Hob built-in Mood 65 Cm images
Hob built-in Mood 65 Cm
Barazza Mood 1PMD64 – Mood 65 is a 65 cm built-in gas hob in 4 mm satin AISI 304 stainless steel. Its four Flat Eco-Design burners include a 4 kW double-ring burner. Cast-iron pan supports, overall dimensions of 650 × 510 mm and a 560 × 480 mm cut-out make planning straightforward.

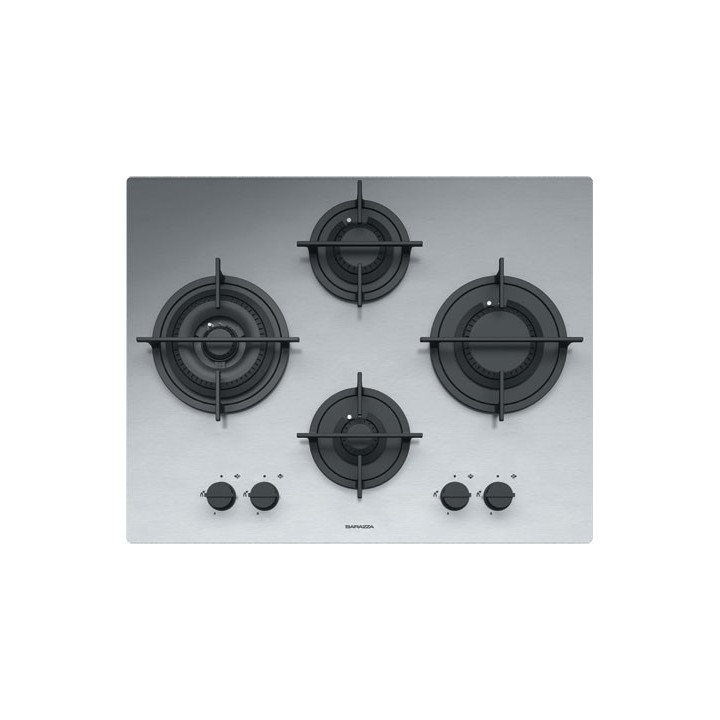

Barazza Mood 65 1PMD64 built-in gas hob
The Mood 65 cm model measures 650 × 510 mm overall and needs a 560 × 480 mm cut-out. The 65 cm Mood hob has a satin AISI 304 stainless-steel surface 4 mm thick. Model 1PMD64 brings together four gas burners and cast-iron pan supports in a compact built-in format. Check the reference carefully: the Mood range also includes other widths and finishes.
Four burners for different tasks
The Flat Eco-Design burner layout covers gentle heating and higher-output cooking. There is a 1 kW auxiliary burner, a 1.75 kW semi-rapid burner and a 3 kW rapid burner. A 4 kW double-ring burner provides the highest output. Barazza describes its vertical flame design as intended to improve efficiency and distribute heat evenly.
Dimensions and installation
Overall size is 650 × 510 mm (width × depth). The worktop cut-out is 560 × 480 mm, with R6 corners shown in the technical drawing. Consult that drawing for the locations of the gas and electrical connections before installation. Select the gas variant appropriate to the installation in the product options.
Technical details
- Reference: 1PMD64; Mood collection; 65 cm built-in gas hob.
- Material: 4 mm satin AISI 304 stainless steel; cast-iron pan supports.
- Burners: auxiliary 1 kW, semi-rapid 1.75 kW, rapid 3 kW, double ring 4 kW.
- Overall size (W × D): 650 × 510 mm; cut-out (W × D): 560 × 480 mm.
- Packaging: 720 × 640 × 140 mm; gross weight: 21 kg.
Download the official Barazza technical drawing from the “Download” section of this product page.
Choosing the right Mood hob
Barazza Mood 1PMD64 is the specific 65 cm model with 4 gas burners. Its overall dimensions are 650 × 510 mm, while the worktop cut-out is 560 × 480 mm. These measurements serve different purposes: the hob occupies more space on the surface than the opening beneath it. Check both against your kitchen plan before ordering, especially when replacing an existing appliance.
Check the selected gas variant and the connections available in your kitchen as well. Dimensions alone do not confirm that an existing worktop can be reused. The manufacturer drawing shows where gas and electrical connections sit. Barazza specifies cast-iron pan supports and a 4 kW double-ring burner for this model. Compare the surface finish with other kitchen materials, then compare the available widths and finishes in the Mood range.
Use the official technical drawing for final planning. It identifies the exact model and its installation dimensions. Follow the manufacturer instructions during fitting and have the gas connection handled according to local requirements.
-
Brand
-
Reference1PMD64
