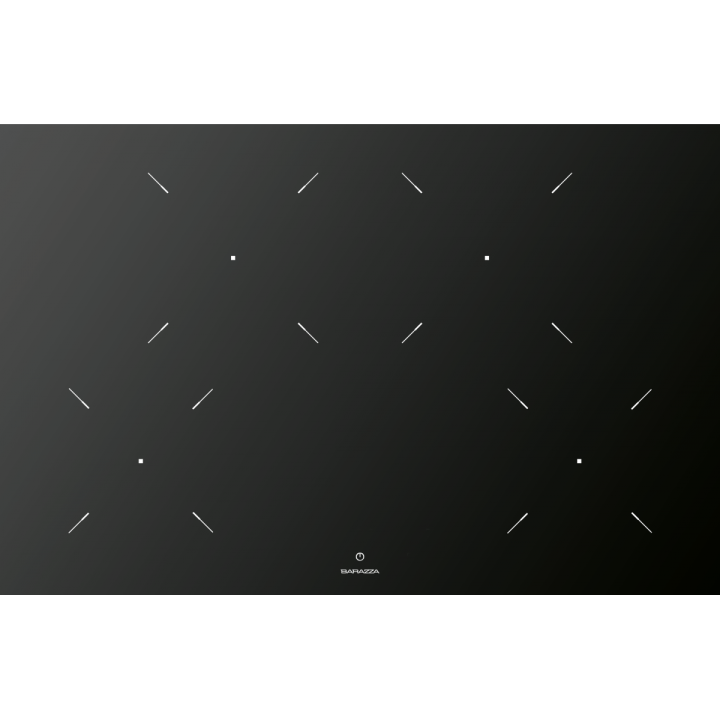

Hob built-in and flush City 80 induction

Barazza City 80 cm induction hob

Barazza City 80 cm induction hob 1PIDC80N. Booster, 9 power levels, warming, automatic preheat, child lock, residual-heat indication, pan detection, safety switch-off and power management provide precise, safe control.

Functions and controls

Booster, 9 power levels, warming, automatic preheat, child lock, residual-heat indication, pan detection, safety switch-off and power management provide precise, safe control.

This module supports a flexible kitchen layout in which each cooking area can be combined with other elements from the B-Free series. The controls are clear, while the compact width makes it possible to design a personal cooking station. Always choose cookware and settings suited to the recipe, start at a moderate level and increase output gradually to retain control of temperature and results. Clean the surface after it has cooled, using a soft cloth and a suitable product. Remove food residue promptly without abrasive tools. A qualified installer should check ventilation, electrical connection, worktop thickness and the official cut-out dimensions. The supplied technical drawing gives the measurements required for correct built-in installation.

Zones and power

• Cooking zones: 2 zones Ø 200 mm, 2.3-3 kW; 2 zones Ø 160 mm, 1.4-2.1 kW
• Maximum absorbed power: 7.4 kW
• Minimum pan diameter: Ø 90 mm

Installation and dimensions

• Built-in cut-out: 76 × 49 cm
• Flush cut-out: 78.3 × 51.3 cm
• Packaging dimensions: 610 × 860 × 125 mm
• Gross weight: 12 kg

This module supports a flexible kitchen layout in which each cooking area can be combined with other elements from the B-Free series. The controls are clear, while the compact width makes it possible to design a personal cooking station. Always choose cookware and settings suited to the recipe, start at a moderate level and increase output gradually to retain control of temperature and results. Clean the surface after it has cooled, using a soft cloth and a suitable product. Remove food residue promptly without abrasive tools. A qualified installer should check ventilation, electrical connection, worktop thickness and the official cut-out dimensions. The supplied technical drawing gives the measurements required for correct built-in installation.

Safety and maintenance

The child lock, residual heat indicator, overflow alarm and automatic safety switch-off support safer use. Clean the glass ceramic after cooling with a soft cloth and a suitable non-abrasive product.

Booster, 9 power levels, warming, automatic preheat, child lock, residual-heat indication, pan detection, safety switch-off and power management provide precise, safe control. The child lock, residual heat indicator, overflow alarm and automatic safety switch-off support safer use. Clean the glass ceramic after cooling with a soft cloth and a suitable non-abrasive product.
