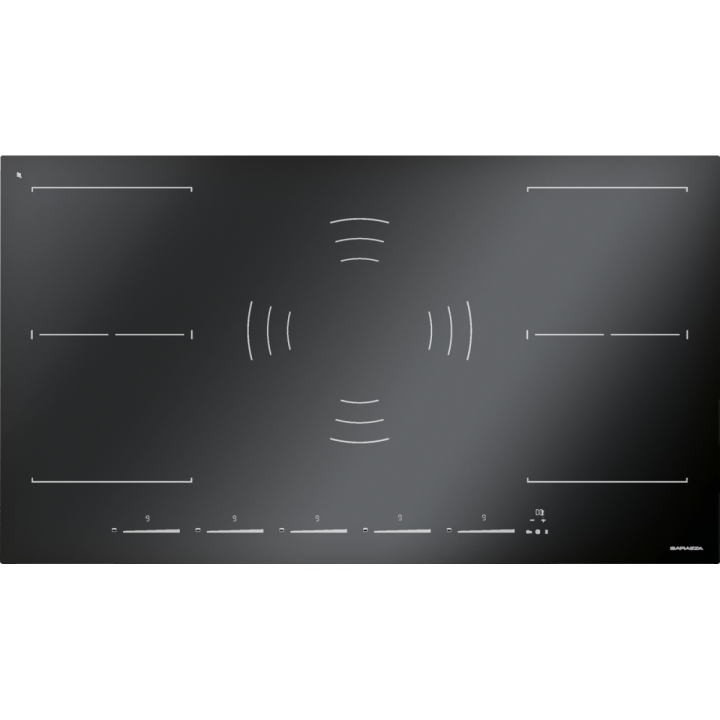

Hob built-in and flush Space 90 cm induction
Barazza Space 90 cm induction hob 1PIDS90N. Booster, 9 power levels, warming, automatic preheat, child lock, residual-heat indication, pan detection, safety switch-off and power management provide precise, safe control. Touch Control with multi-slider operates five induction zones. Three automatic cooking levels for Warming, Melt and Simmer, Bridge, Booster, automatic pan recognition and a 1-99 minute timer provide flexible control.
Barazza Space 90 cm induction hob
Barazza Space 90 cm induction hob 1PIDS90N. Booster, 9 power levels, warming, automatic preheat, child lock, residual-heat indication, pan detection, safety switch-off and power management provide precise, safe control. Touch Control with multi-slider operates five induction zones. Three automatic cooking levels for Warming, Melt and Simmer, Bridge, Booster, automatic pan recognition and a 1-99 minute timer provide flexible control.
Functions and controls
Booster, 9 power levels, warming, automatic preheat, child lock, residual-heat indication, pan detection, safety switch-off and power management provide precise, safe control.
This module supports a flexible kitchen layout in which each cooking area can be combined with other elements from the B-Free series. The controls are clear, while the compact width makes it possible to design a personal cooking station. Always choose cookware and settings suited to the recipe, start at a moderate level and increase output gradually to retain control of temperature and results. Clean the surface after it has cooled, using a soft cloth and a suitable product. Remove food residue promptly without abrasive tools. A qualified installer should check ventilation, electrical connection, worktop thickness and the official cut-out dimensions. The supplied technical drawing gives the measurements required for correct built-in installation.
Zones and power
- Cooking zones: 1 central zone Ø 260 mm, 2.6-5.5 kW; 4 Octa zones, 2.1-3.7 kW
- Maximum absorbed power: 11.1 kW
- Minimum pan diameter: Ø 125 mm
Installation and dimensions
- Built-in cut-out: 86 × 49 cm
- Flush cut-out: 90.3 × 51.3 cm
- Packaging dimensions: 1000 × 620 × 130 mm
- Gross weight: 18.1 kg
This module supports a flexible kitchen layout in which each cooking area can be combined with other elements from the B-Free series. The controls are clear, while the compact width makes it possible to design a personal cooking station. Always choose cookware and settings suited to the recipe, start at a moderate level and increase output gradually to retain control of temperature and results. Clean the surface after it has cooled, using a soft cloth and a suitable product. Remove food residue promptly without abrasive tools. A qualified installer should check ventilation, electrical connection, worktop thickness and the official cut-out dimensions. The supplied technical drawing gives the measurements required for correct built-in installation.
Safety and maintenance
The child lock, residual heat indicator, overflow alarm and automatic safety switch-off support safer use. Clean the glass ceramic after cooling with a soft cloth and a suitable non-abrasive product.
Touch Control with multi-slider operates five induction zones. Three automatic cooking levels for Warming, Melt and Simmer, Bridge, Booster, automatic pan recognition and a 1-99 minute timer provide flexible control. Booster, 9 power levels, warming, automatic preheat, child lock, residual-heat indication, pan detection, safety switch-off and power management provide precise, safe control. The child lock, residual heat indicator, overflow alarm and automatic safety switch-off support safer use. Clean the glass ceramic after cooling with a soft cloth and a suitable non-abrasive product.
