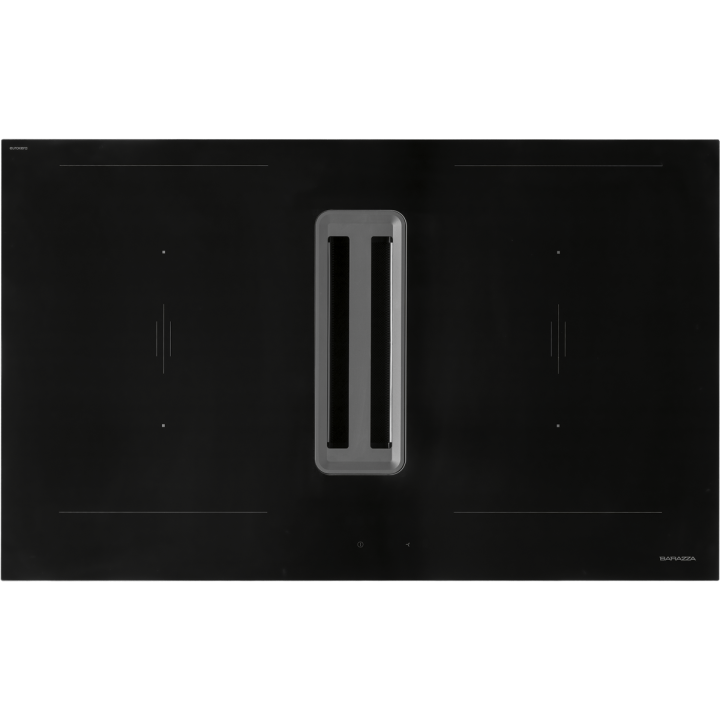

Zero Advance built-in cooktop with 80 cm flush installation

Barazza Zero Advance 80 cm induction hob

Barazza Zero Advance 80 cm induction hob 1PZA8N. Booster, 9 power levels, warming, automatic preheat, child lock, residual-heat indication, pan detection, safety switch-off and power management provide precise, safe control. The integrated hood provides 8 speeds plus 2 intensive settings, automatic extraction, a nominal airflow of 800 m³/h, pressure of 497 Pa, noise level of 63-69 Lw dB(A), a black aluminium filter and A+ energy class. Rear ducted extraction and optional recirculation are documented.

Functions and controls

Booster, 9 power levels, warming, automatic preheat, child lock, residual-heat indication, pan detection, safety switch-off and power management provide precise, safe control.

This module supports a flexible kitchen layout in which each cooking area can be combined with other elements from the B-Free series. The controls are clear, while the compact width makes it possible to design a personal cooking station. Always choose cookware and settings suited to the recipe, start at a moderate level and increase output gradually to retain control of temperature and results. Clean the surface after it has cooled, using a soft cloth and a suitable product. Remove food residue promptly without abrasive tools. A qualified installer should check ventilation, electrical connection, worktop thickness and the official cut-out dimensions. The supplied technical drawing gives the measurements required for correct built-in installation.

Zones and power

• Cooking zones: 4 Octa, 2.1 kW; 3 kW with Booster; 3.7 kW with Bridge
• Maximum absorbed power: 7.4 kW hob + 0.22 kW hood
• Minimum pan diameter: Ø 110 mm

Installation and dimensions

• Built-in cut-out: 75 × 47.5 cm
• Flush cut-out: 83.3 × 52.2 cm
• Packaging dimensions: 1100 × 710 × 340 mm
• Gross weight: 26 kg

This module supports a flexible kitchen layout in which each cooking area can be combined with other elements from the B-Free series. The controls are clear, while the compact width makes it possible to design a personal cooking station. Always choose cookware and settings suited to the recipe, start at a moderate level and increase output gradually to retain control of temperature and results. Clean the surface after it has cooled, using a soft cloth and a suitable product. Remove food residue promptly without abrasive tools. A qualified installer should check ventilation, electrical connection, worktop thickness and the official cut-out dimensions. The supplied technical drawing gives the measurements required for correct built-in installation.

Safety and maintenance

The child lock, residual heat indicator, overflow alarm and automatic safety switch-off support safer use. Clean the glass ceramic after cooling with a soft cloth and a suitable non-abrasive product.

The integrated hood provides 8 speeds plus 2 intensive settings, automatic extraction, a nominal airflow of 800 m³/h, pressure of 497 Pa, noise level of 63-69 Lw dB(A), a black aluminium filter and A+ energy class. Rear ducted extraction and optional recirculation are documented. Booster, 9 power levels, warming, automatic preheat, child lock, residual-heat indication, pan detection, safety switch-off and power management provide precise, safe control. The child lock, residual heat indicator, overflow alarm and automatic safety switch-off support safer use. Clean the glass ceramic after cooling with a soft cloth and a suitable non-abrasive product.
