Hood for wall 90 cm Unique

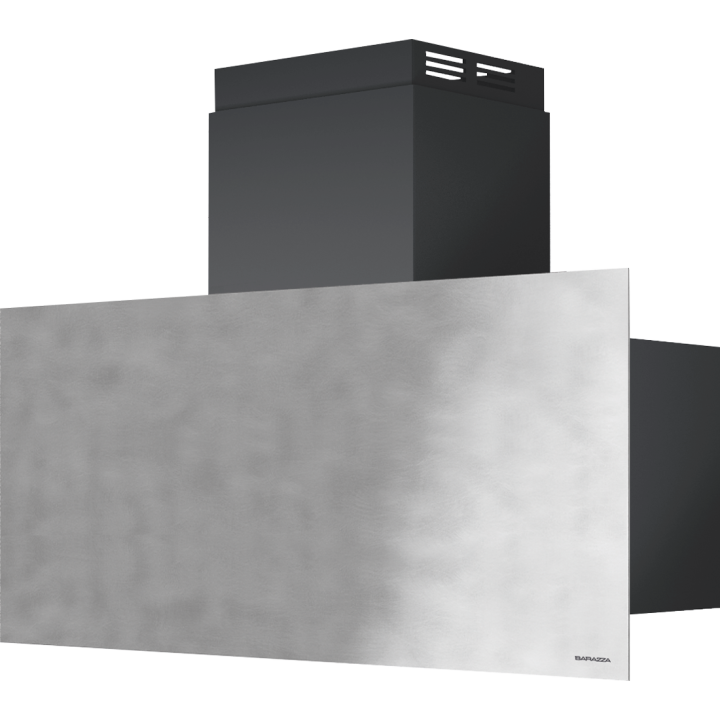

Barazza Unique 1KUNP91 is a wall mounted cooker hood designed for a 90 cm kitchen module. Its black and Vintage-finished AISI 304 stainless steel belongs to the Unique collection. The treated surface gives the metal an intentionally aged appearance. This is the wall version, intended to sit above a hob against a wall; it should not be confused with an island hood. Before choosing a position, check the available wall space, the route for the duct and the room needed for the adjustable chimney.

Extraction and everyday use

Electronic controls provide three normal speeds and an intensive setting. A lower setting can be selected for lighter cooking, while the intensive mode is available when more steam or cooking fumes are produced. Barazza states an air flow of 800 m³/h and a pressure of 501 Pa. The published noise range is 39–65 Lw(dBA), according to operating level. A strip of LED lighting at 4000 K illuminates the cooking area below the hood. The filters are made from stainless steel and form part of the appliance's distinctive design.

Ducting, filtering and control

For extraction to the outside, the outlet is Ø 150 mm; Barazza also specifies a reducer to Ø 120 mm. Filtering operation is optional and calls for suitable additional components. The double carbon filter 1FC1 is listed as a related accessory, rather than as an included filter. The telescopic chimney adjusts from 77.5 to 105.5 cm in height. Check this range against the proposed installation height and ceiling before ordering. The hood is prepared for remote control through a compatible Barazza scale, which is a separate product and is not described as supplied with the hood.

Technical details for planning

• Model: Barazza Unique 1KUNP91, wall mounted, 90 cm module.
• Drawing width: 899 mm across the front; hood body height: 450 mm.
• Finish: black and Vintage-finished stainless steel, grade AISI 304.
• Three speeds plus intensive mode; air flow 800 m³/h; pressure 501 Pa.
• Sound level 39–65 Lw(dBA); energy rating A; maximum absorbed power 0.3 kW.
• Duct outlet Ø 150 mm with Ø 120 mm reducer; optional filtering operation.
• Electronic controls, stainless steel filters and a 4000 K LED light bar.
• Telescopic chimney height: 775–1055 mm.

Use the official technical drawing to establish fixing points and installation clearances. The chimney height is the range of the adjustable section, not the total height of every finished installation. The exact duct route and any filtering accessories should be planned for the intended kitchen.
