Hood for wall 90 cm City Glass

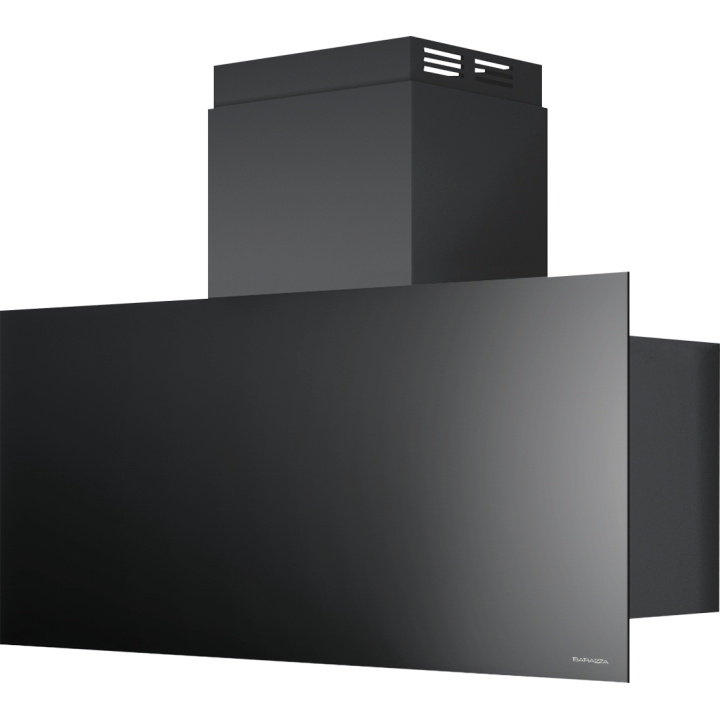

Barazza City Glass 1KCYP9 is a wall mounted cooker hood for a 90 cm kitchen module. Its front is made from black tempered glass, 4 mm thick, while the filters are stainless steel. Barazza presents City Glass as a design intended especially for installation above induction hobs, where condensation on the hood surface can be a concern. This is the wall version. Check the wall space, the duct route and the clearance above the hob before choosing its position.

Extraction and everyday use

Electronic controls provide three normal speeds and an intensive setting. A lower setting can be selected for lighter cooking, while the intensive mode is available when more steam or cooking fumes are produced. Barazza states an air flow of 800 m³/h and a pressure of 565 Pa. The published noise range is 45–64 Lw(dBA), according to operating level. A strip of LED lighting at 4000 K illuminates the cooking area below the hood. The filters are made from stainless steel and form part of the appliance's distinctive design.

Ducting and control

The extraction outlet is Ø 150 mm, and Barazza specifies a reducer to Ø 120 mm. The telescopic chimney adjusts from 77.5 to 105.5 cm. Compare this range with the ceiling height and the planned duct position. The hood is prepared for remote operation through a compatible Barazza scale; the scale is not stated to be included. Stainless steel filters are part of the hood, while the glass front should remain accessible for normal cleaning and maintenance.

Technical details for planning

• Model: Barazza City Glass 1KCYP9, wall mounted, 90 cm module.
• Actual front width in the drawing: 899 mm for a nominal 90 cm module.
• Black tempered glass, 4 mm thick; stainless steel filters.
• Three speeds plus intensive mode; air flow 800 m³/h; pressure 565 Pa.
• Sound level 45–64 Lw(dBA); energy rating A; maximum absorbed power 0.3 kW.
• Duct outlet Ø 150 mm with Ø 120 mm reducer.
• Electronic controls, stainless steel filters and a 4000 K LED light bar.
• Telescopic chimney height: 775–1055 mm.

The official technical drawing gives an actual front width of 899 mm for the nominal 90 cm module. Use the drawing to check the remaining dimensions and fixing points before drilling into the wall. The chimney range describes its adjustable height rather than the total height of every completed installation. Plan the duct route for the specific kitchen and check that the position remains accessible for routine care.
