Hood ceiling 90 cm B_Ambient

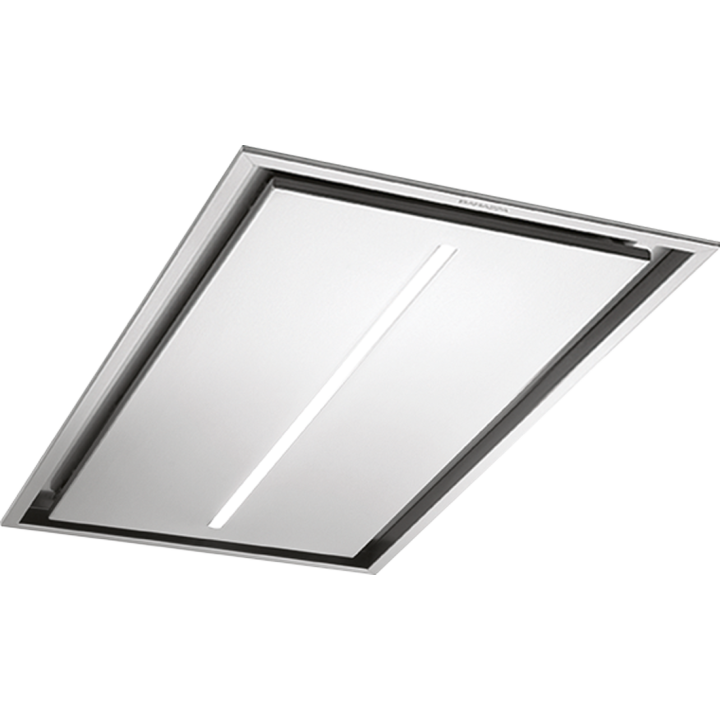

Barazza B_Ambient 1KBAS9 is a ceiling cooker hood designed for a 90 cm kitchen module. Its satin-finished AISI 304 stainless steel panel uses perimeter extraction, drawing air around the central panel. This is a built-in ceiling appliance, so the ceiling construction and duct route need to be considered during planning. It is not a wall hood with a telescopic chimney. The official drawing shows external dimensions of 900 × 500 mm and a separate built-in cut-out of 870 × 476 mm.

Extraction and controls

Soft Touch electronic controls provide three regular speeds and an intensive setting. Barazza states a nominal motor flow of 1000 m³/h and pressure of 425 Pa. The published sound power range is 41–72 Lw(dBA). The LED light bar has a 3000 K colour temperature. Two stainless steel filters are fitted, with a maintenance reminder for cleaning them. The air exchange function can run the hood automatically for ten minutes every hour at a medium speed. A remote control is included for selecting a speed and operating the light from elsewhere in the room.

Ducting and ceiling installation

For external extraction, the outlet is Ø 150 mm and a reducer to Ø 120 mm is specified. Filtering operation is optional and needs suitable additional parts; the double carbon filter 1FC1 is listed as an accessory. The hood is also prepared for control through a compatible Barazza scale. The included remote and that separate scale are different items. Before installation, check the cut-out, the strength of the ceiling, the space above the finished surface and the proposed duct route against the official drawing.

Technical data

• Model: Barazza B_Ambient 1KBAS9, built-in ceiling hood for a 90 cm module.
• External panel 900 × 500 mm; built-in cut-out 870 × 476 mm.
• Satin AISI 304 stainless steel with perimeter extraction.
• Three speeds plus intensive; 1000 m³/h motor flow; 425 Pa; 41–72 Lw(dBA).
• 3000 K LED bar, Soft Touch controls, two stainless steel filters and filter alert.
• Air exchange and included remote; optional filtering mode.
• Outlet Ø 150 mm with Ø 120 mm reducer; rating B; 0.3 kW.

Dimensions and planning

The 900 mm external width corresponds to the nominal module size. The 870 × 476 mm opening is a built-in cut-out and must not be used as an external dimension. Barazza states energy rating B and maximum absorbed power of 0.3 kW. The drawing also lists a gross weight of 25.5 kg and package dimensions of 1060 × 620 × 380 mm; those describe transport packaging rather than the installation opening.
