Hob Thalas 40 Cm Freestanding for outdoor use images

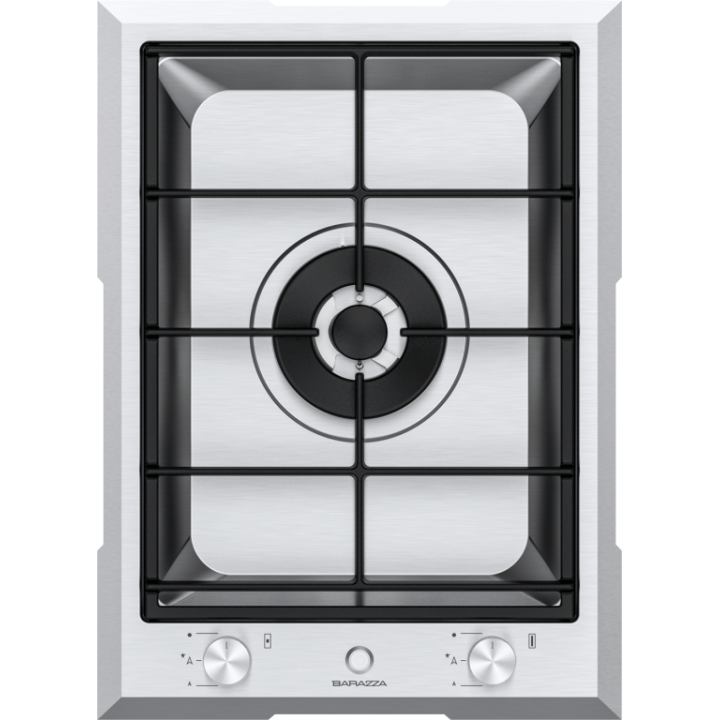

Barazza Thalas 1PTF1 — freestanding outdoor gas hob, satin AISI 316 stainless steel. The burner has a total output of 4.7 kW. Cookware rests on a cast-iron pan support.
Barazza Thalas 1PTF1 is a freestanding gas hob in the Thalas outdoor collection. Its substantial satin AISI 316 stainless steel body is intended for cooking outside. This model has one double-ring burner and stands independently, so it does not require a cut-out in the worktop. Check the supporting surface and gas installation before use.
The burner has a total output of 4.7 kW. Separate controls adjust its 0.8 kW central flame and 3.9 kW outer ring. This arrangement lets you adapt the flame to the cookware and is also suitable for wok cooking when the pan fits the cast-iron support. These ratings apply specifically to reference 1PTF1; other Thalas gas and induction models have different layouts and power.
Cookware rests on a cast-iron pan support. The technical drawing also identifies a cast-iron flame spreader. Electronic ignition is powered by a battery, so ignition does not depend on a mains connection. Barazza specifies a safety valve, eco-flame and provision for LPG supply. A waterproof cover sheet is included. Follow the instructions for the chosen gas supply and connection.
The external footprint is 400 × 550 mm (width × depth), as shown on the official drawing. That drawing locates the gas connection, the battery and the gas pipe outlet. This is a freestanding appliance, and there is no cabinet cut-out dimension. Allow access for the gas connection and observe the clearances in the installation instructions when planning its position.
Gross weight is 12 kg; the package measures 570 × 750 × 180 mm. The satin AISI 316 stainless steel hob has one double-ring burner, cast-iron support, battery ignition, safety valve and waterproof cover. Consult the attached technical drawing when checking space, service access and the exact reference before ordering.
